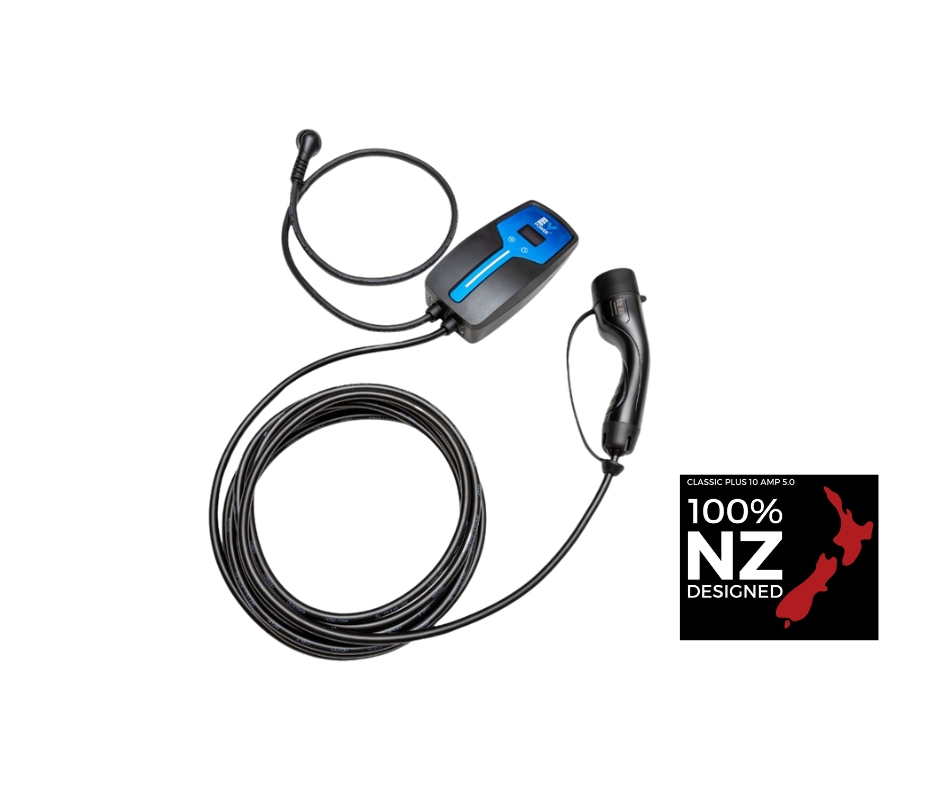

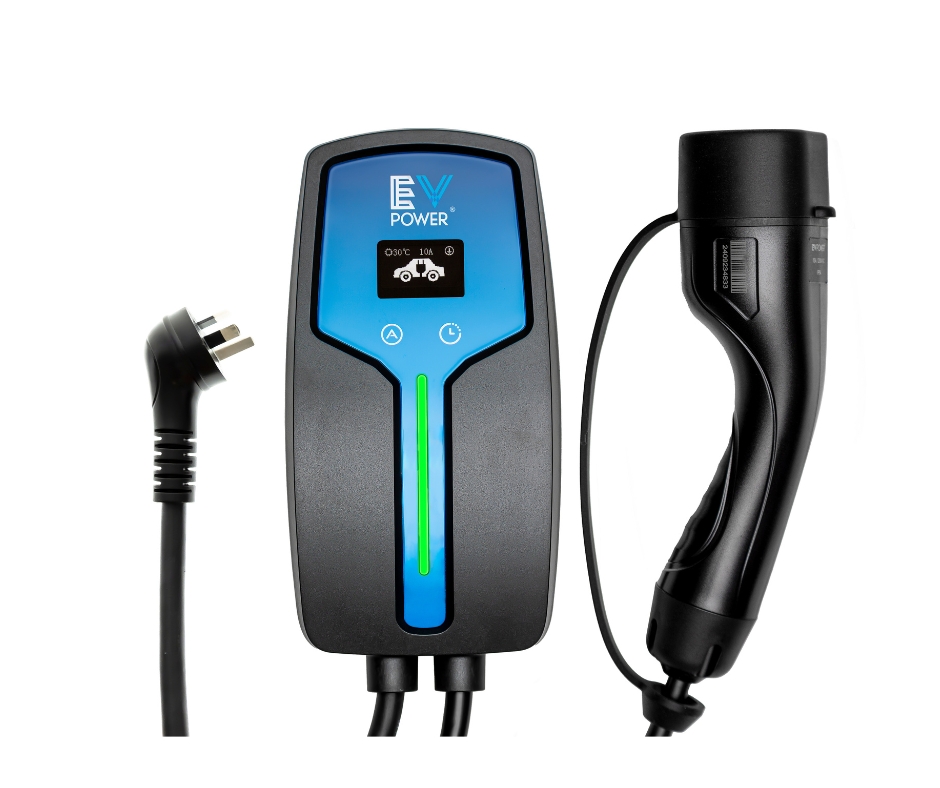

Classic 5.0 Type 2, Charger Cable, 10 Amp

This EV Power Type 2 Plug is compatible with NZ new EV’s and PEV’s, and ex-UK imported EV’s.

Key Features

  • Delayed start (up to 12 hours) to use cheaper off-peak power.
  • Charging Timer for convenience and control (up to 12 hours).
  • Features a unique wall-mountable base design used to better protect against water ingress and enhance elegance.
  • Flexible Charging Options: Switch between 6A, 8A, or 10A settings.
  • User-Friendly OLED Display: Easily view charging time, delivered power, current rate, and voltage at a glance.
  • Wall cradle for convenient mounting.

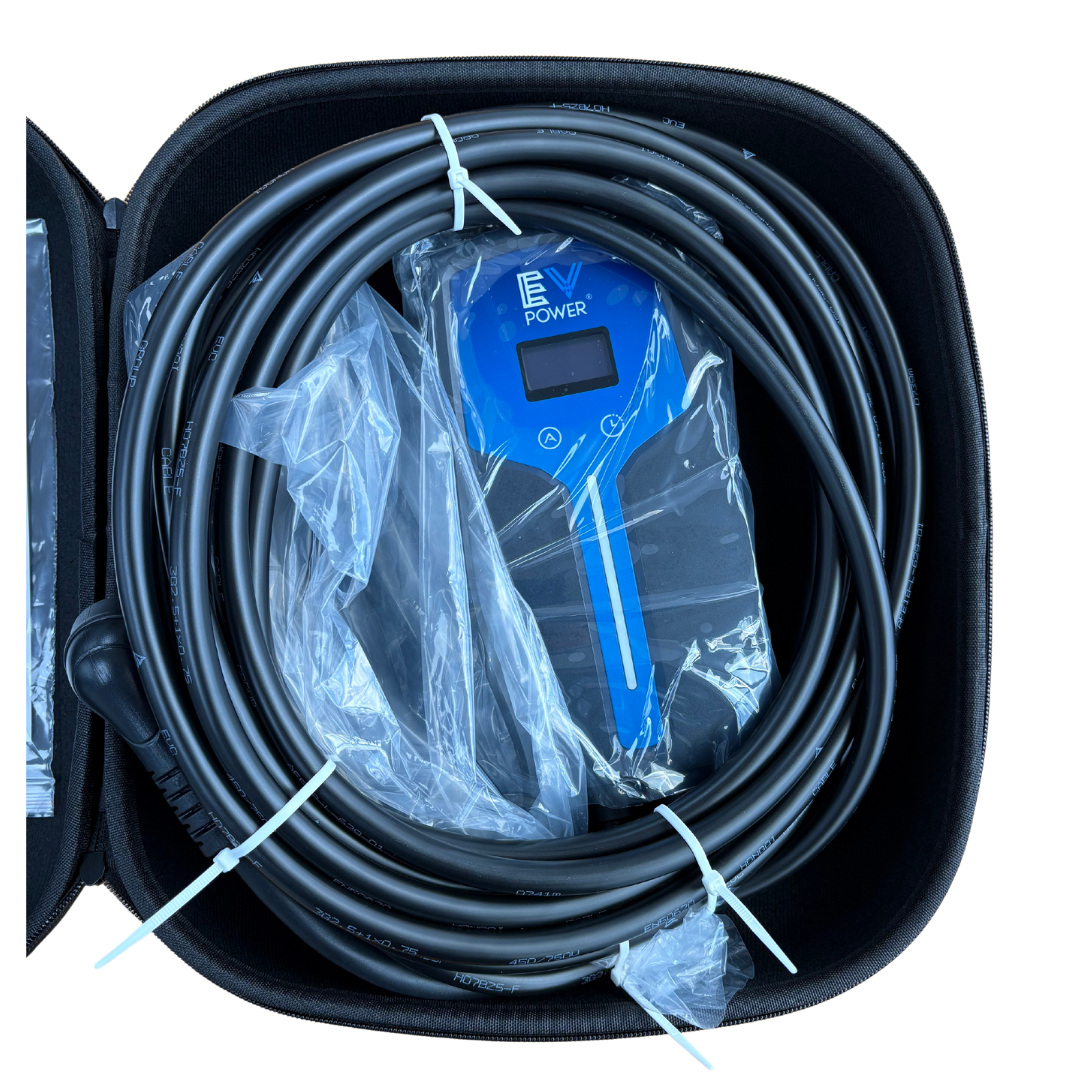

  • Stylish, durable carry bag for portability.
Categories: ,

Description

Specifications

  • Cable Length: 1m inlet cord, 8m outlet cord (9m total).

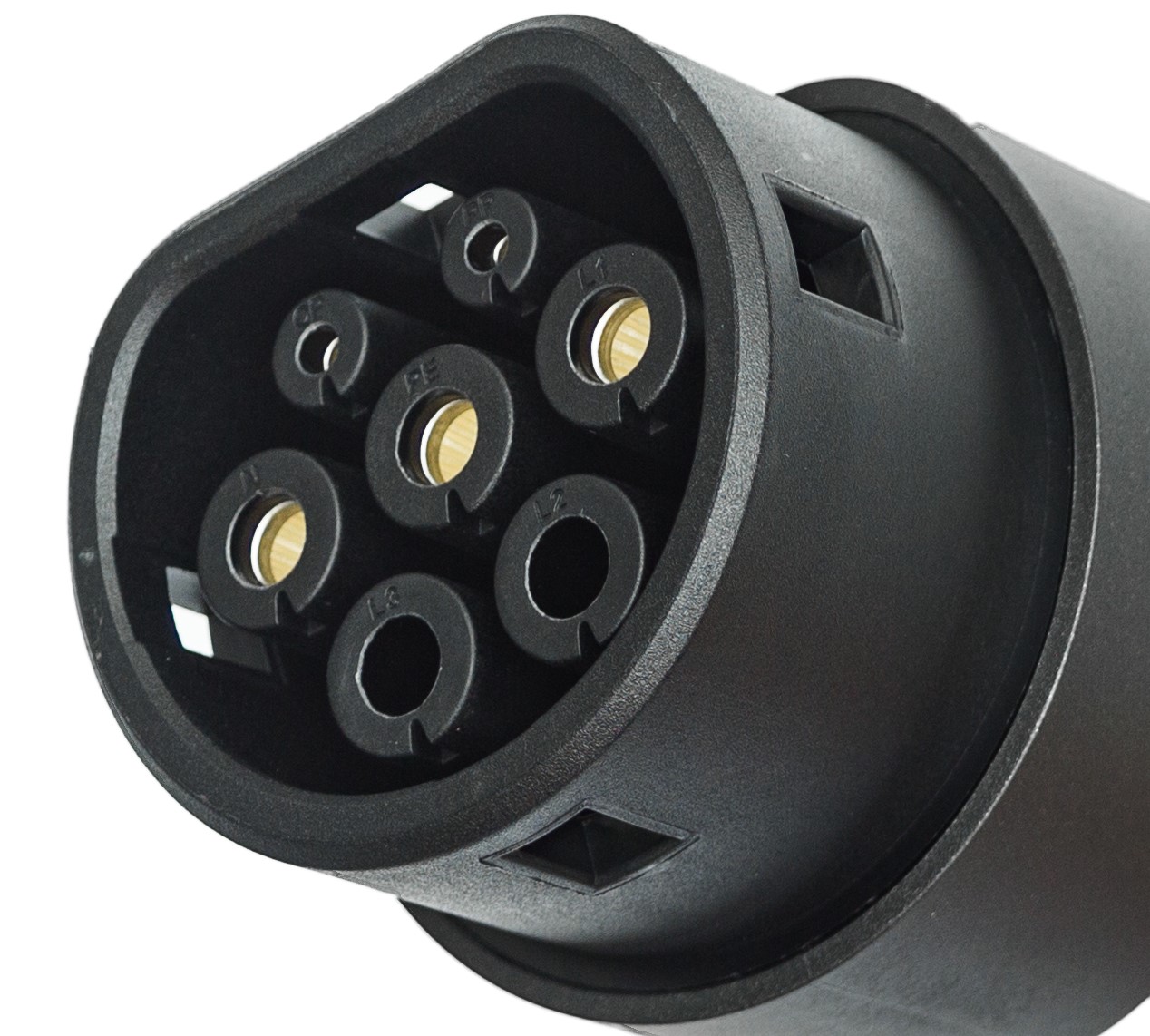

  • Connector Type: Type 2 suitable for NZ new EVs
  • Input Voltage: 230V AC, 50Hz
  • Rated Current: 6-10A
  • Rated Power: 2.3kW @ 10A
  • Power supply: 1-phase
  • Connector: Type 1Plug: 10A
  • Dimensions: 220mm H x 110mm W x 64mm D
  • Weight: 3.1kg unboxed (3.8kg with carry case)
  • Working Temp: -30 to +50 degrees C.
  • Humidity: 0-95% non-condensing.
  • IP rate: IP 67 Dust- and water-resistant for safe use indoors or outdoors.
  • Work altitude: <3000m.
  • Advanced Temperature Protection: Sensors in the plug pins ensure safe operation at full capacity, perfect for New Zealand’s 10A three-pin sockets.
  • 6mA DC Fault Detection: Provides peace of mind by stopping DC feedback in the unlikely event of an onboard charger failure.
  • Comprehensive Safeguards: Protection against overcurrent, overvoltage, and overheating (auto shut-off at 85°C) in compliance with IEC62752/IEC62196-2 and
  • AS/NZ 3820;
  • Residual current protection
  • Leakage detection: 30 mA AC
  • Warranty; 3 years
