Key Features

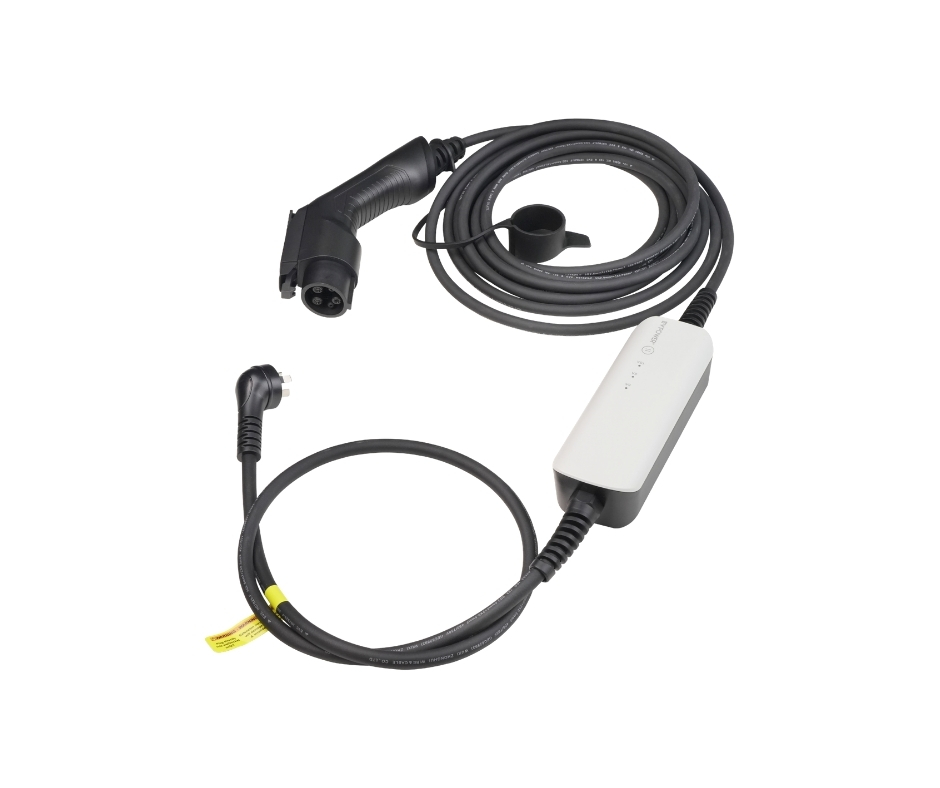

- Total cable length of 7m, (1m inlet lead + 6m vehicle charging cable)

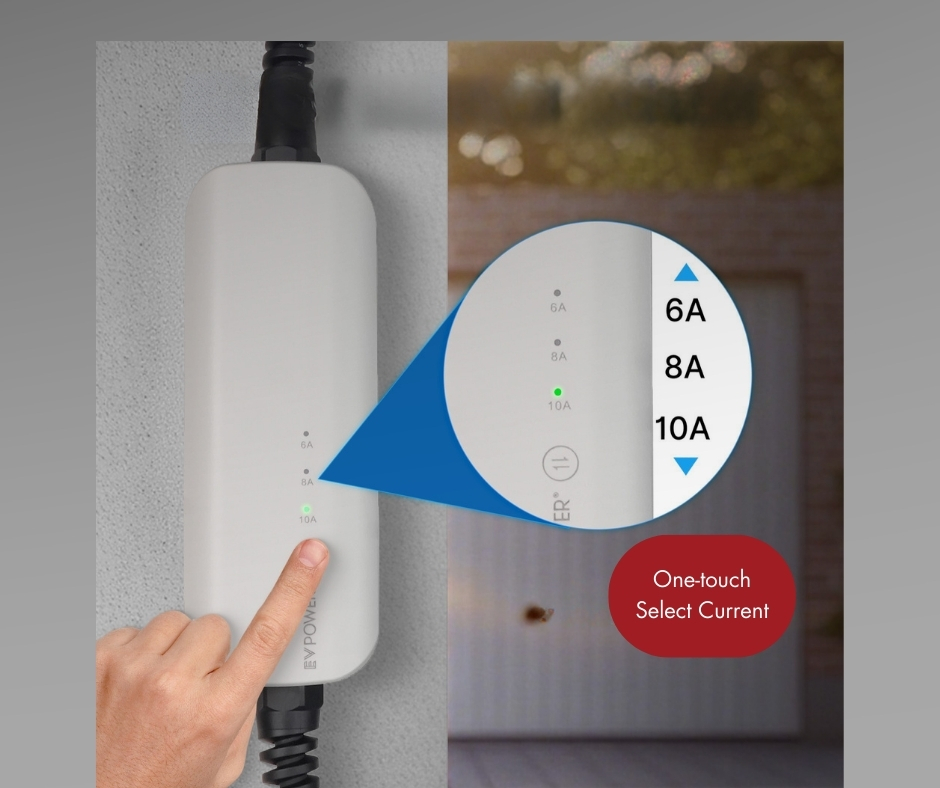

- Switchable between 6A, 8A, and 10A, allowing the charging current to be reduced. Perfect when using older wiring, shared circuits, or locations with limited power capacity.
- 6 mA DC residual direct current detection, allowing use with a standard Type A RCD where permitted.

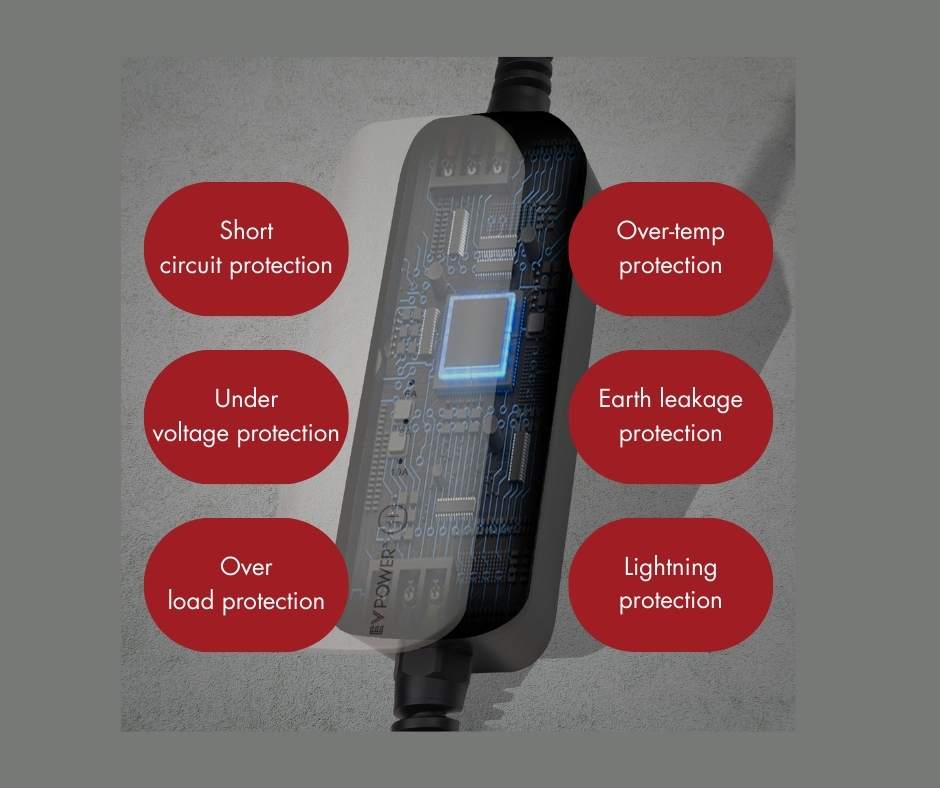

- An integrated temperature sensor within the AU/NZ three-pin plug continuously monitors plug temperature during charging. If abnormal temperature rise is detected, charging is automatically interrupted to reduce the risk of overheating.
- IEC 62752 requirements met for portable EV charging equipment.
- Compact in-line control box.
- Status indication lights
Specifications
- Input voltage: 230V AC
- Single-phase
- Selectable current: 6/ 8 / 10 Amps
- Maximum output power: 2.3 kW (at 10A)
- Charging mode: Mode 2 (IC-CPD)
- Vehicle connector: Type 1 (SAE J1772)
- Residual current protection: 6 mA DC detection (RDCDD)
- Plug temperature monitoring: Integrated sensor at AU/NZ three-pin plug
- Compliance: IEC 62752
- Total cable length: 7m
- Inlet cable length: 1m
- Vehicle cable length: 6m
- IP65
2 Year Warranty FOR INDOOR USE ONLY
